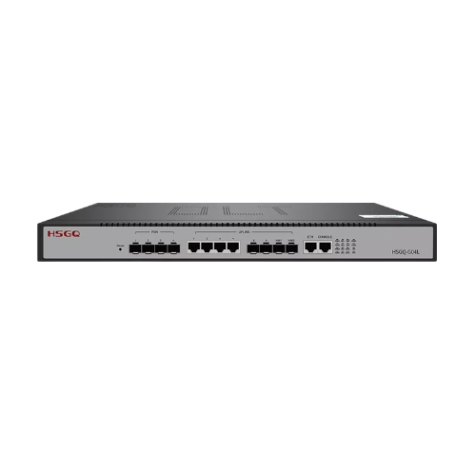

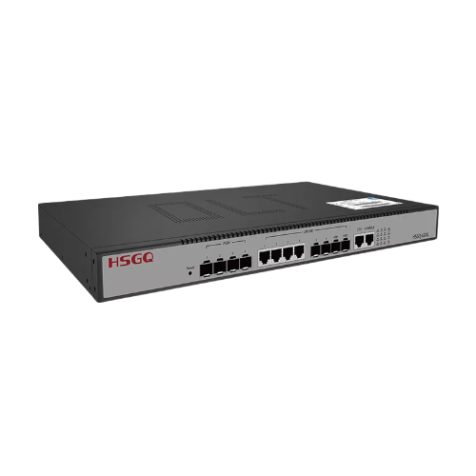

HSGQ-G04L 4-Port GPON OLT

HSGQ-G04L 4-Port GPON OLT – High-Performance FTTH Optical Line Terminal

The HSGQ-G04L GPON OLT is a next-generation, carrier-grade 4-Port Optical Line Terminal designed for high-speed FTTH (Fiber to the Home) and FTTx broadband networks. With advanced 10G uplinks, dual power redundancy, and smart cloud management, it delivers outstanding stability, scalability, and performance for ISPs, telecom operators, and enterprise networks.

Key Features

• High-Capacity GPON Performance
• Equipped with 4 GPON ports, each supporting 1:128 split ratio, serving up to 512 ONUs total.
• Supports high-speed fiber broadband, IPTV, and VoIP triple-play services.
• Flexible Uplink Interfaces
• Includes 4× GE RJ45, 2× GE SFP, and 2× 10G SFP+ uplink ports.
• Ensures ultra-fast data transfer and easy network expansion for any FTTH infrastructure.

Intelligent Network Management

• Supports Web GUI, CLI, SNMP, and Cloud NMS for simplified monitoring and control.
• Built-in support for VLAN, QinQ, QoS, ACL, IGMP Snooping, and Loop Detection for optimal network performance.

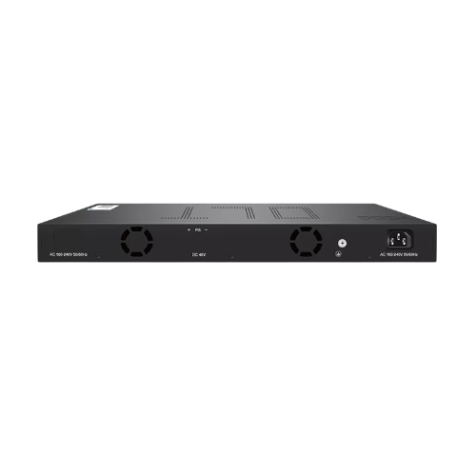

Redundant Power System

• Dual AC/DC power supply options for reliable, non-stop service.
• Energy-efficient (<50W power consumption) and environmentally friendly.

Compact & Durable Design

• 1U rackmount chassis (442×260×44 mm) with lightweight metal housing.
• Operating temperature range –10°C to +55°C, suitable for data centers and outdoor cabinets.

Technical Specifications

• Model: HSGQ-G04L
• PON Ports: 4 × GPON ports
• Split Ratio: Up to 1:128 per PON port
• Max ONUs: 512 ONUs total
• Uplink Ports: 4 × GE RJ45, 2 × GE SFP, 2 × 10G SFP+
• Power Supply: AC 100–240 V / DC –48 V (optional dual redundancy)
• Power Consumption: ≤ 50 W
• Management: Web / CLI / SNMP / NMS / Cloud
• Dimensions: 442 × 260 × 44 mm (1U)
• Operating Temp: –10°C ~ +55°C
