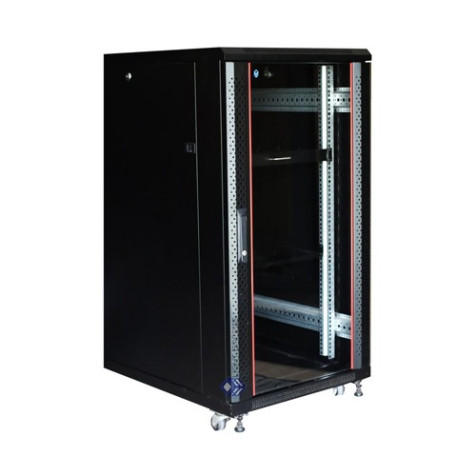

LIGHT BREEZE 22U Closed Network Rack 600X1000

LIGHT BREEZE 22U Closed Network Rack (600×1000 mm) – Specification

General Information

• Type: 22U Standard 19" Floor Standing Rack
• Model: LB-22.60.01.02
• Structure: Welded steel frame, heavy-duty build
• Finish: Epoxy powder coating

Dimensions

• Height (overall): 1166 mm
• Width: 600 mm
• Depth: 1000 mm
• Usable mounting depth: ~550 mm

Doors & Panels

• Front Door: Tempered glass with decorative strip, hand lock, opens >180°
• Side Panels: Removable with cam lock, easy maintenance access
• Rear Door: Steel, lockable, ventilation support

Cooling & Ventilation

• Top Panel: Vented with 2 × 4″ low-noise cooling fans (pre-installed)
• Side & Rear: Ventilation slots for airflow

Mounting System

• Mounting Rails: 4 × galvanized steel profiles with unit markings
• Equipment Standard: 19-inch rackmount devices

Cable Management

• Top & Bottom: Cable entry points for flexible routing

Mobility & Installation

• Base: Adjustable leveling feet + heavy-duty casters (for mobility)

Accessories

• Power: Optional 6-way PDU (Power Distribution Unit)
• Installation: Includes M6 cage nuts pack
• Optional: Fixed or sliding shelves
