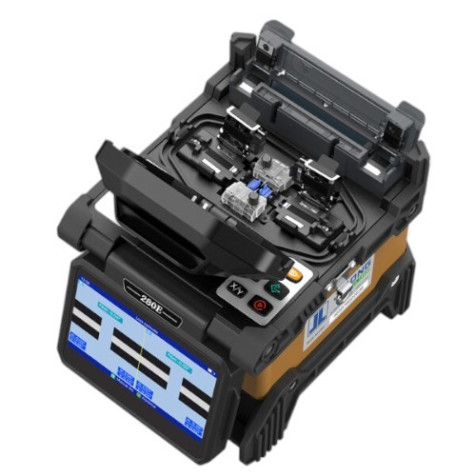

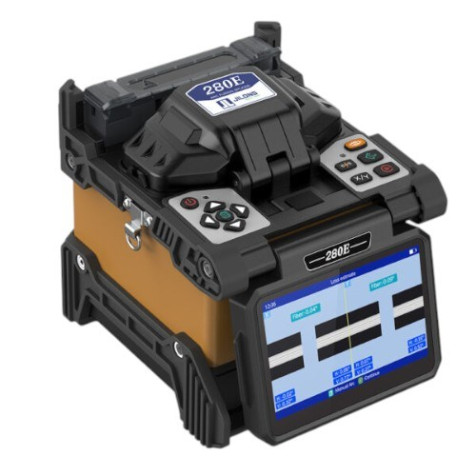

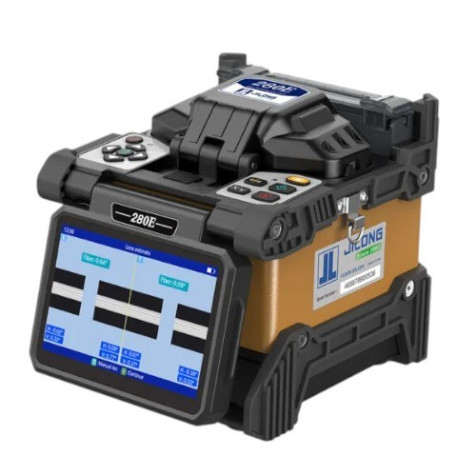

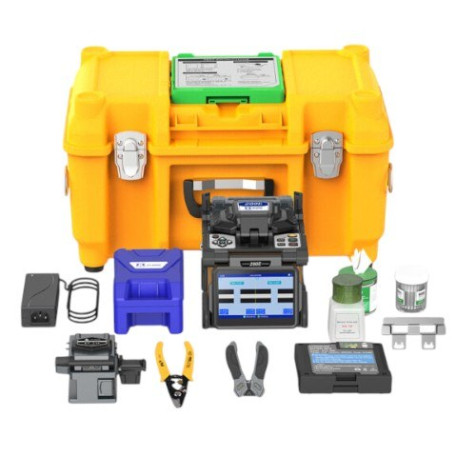

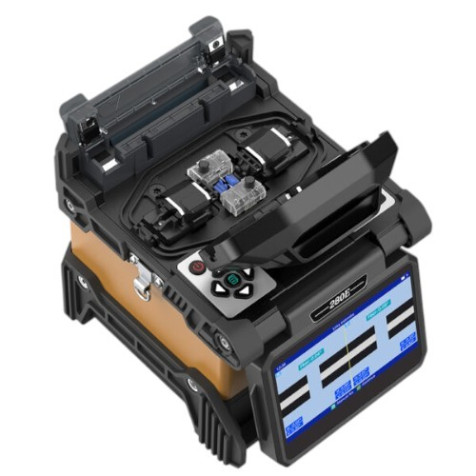

Jilong 280E Fusion Splicer, All-Rounder, Middle Trunk Line

Jilong 280E Fusion Splicer – Best Price in Bangladesh (2025) | High-Performance Fiber Splicing Machine

Key Features

• Active Clad-Alignment Technology – Ensures high-precision splicing with minimal splice loss
• Ultra-Fast Splicing & Heating – 6-second splicing & 18-second heating for maximum efficiency
• Lightweight & Portable Design – Weighs only 1.9kg (with battery) – Ideal for field & aerial work
• 4.3-inch High-Resolution Color Display – 800x480 pixel screen for clear fiber viewing & operation
• Powerful 6800mAh Battery – Supports 300+ splicing & heating cycles per charge
• Automatic Fiber & ARC Identification – Smart technology for error-free splicing
• Large Data Storage – Saves 10,000 splice records & 2,000 images
• Wide Fiber Compatibility – Supports SM, MM, DS, NZDS, and G.657 fiber types
• Durable & Rugged – Designed for harsh environments, dust-proof, and water-resistant

Jilong 280E Fusion Splicer Technical Specifications

• Alignment Method: Active Clad-Alignment
• Applicable Fiber Types: SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655)
• Compatible Fiber/Cable: 0.25~3.0mm, Leather Cable
• Fiber Cleave Length: 8-16mm
• Splicing Mode: 128 programmable modes
• Splicing Time: 6 sec. (SM G652 Quick Mode)
• Heating Time: 18 sec. (Adjustable, Quick Mode)
• Splice Loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
• Return Loss: >60dB
• Electrode Life: 5,000 arcs (replaceable)
• Battery: 6800mAh, supports 300+ splicing & heating cycles per charge
• Storage Capacity: 10,000 splice records, 2,000 images
• Tension Test: 1.96~2.25N
• Operating Condition: Altitude: 0~5,000m, -20°C to +50°C, Max Wind Speed: 15m/s
• Weight: 1.6kg (without battery), 1.9kg (with battery)
• Display: 4.3-inch high-resolution (800x480) color touchscreen
• USB 2.0 Port – For firmware updates & data transfer

Why Choose the Jilong 280E Fusion Splicer?

• Perfect for FTTx, FTTH, and Middle Trunk Line Networks
• Fast & Efficient Splicing – Saves Time & Boosts Productivity
• Lightweight & Durable – Ideal for Field & Aerial Operations
• Designed for Harsh Environments – Built to Last
• Best Price in Bangladesh (2025) – Unbeatable Value
